| Specification | Main material | Dimensions | Filling Medium |
| 20 Feet (ICC) | Carbon steel tank Q345D frame | Shape:6058*2438*2591 | Acetone, |
| Tank: DN2380*5 | butanol, | ||
| Weight: 3700kg | ethanol, | ||
| gasoline and diesel, | |||
| toluene, | |||
| sodium hydroxide solution, | |||
| monomer styrene, | |||
| ammonia, | |||
| benzene, | |||
| butyl acetate, | |||
| carbon disulfide, | |||
| dimethylamine water, | |||
| ethylcetate, | |||
| isobutanol, | |||
| isopropanol, | |||
| kerosene, | |||
| methanol, | |||
| crude oil, | |||
| xylene, | |||
| acetone cyanide, | |||
| glacial acetic acid, | |||
| acetic acid solution, | |||
| anhydrous chloraldehyde, stabilized, | |||
| formaldehyde solution, | |||
| Stainless steel tank(6mm thickness)Q345D frame | Shape:6058*2438*2591 | isobutanol, | |
| Tank: DN2380*5 | phosphorus trichloride, | ||
| Weight: 4500kg | hydrated sulfide sodium, | ||
| Stainless steel tank(6mm thickness)Q345D frame | Shape:6058*2438*2591 | aqueous hydrogen peroxide, | |
| Tank: DN2380*5 | nitric acid, except for red smoke, monomer styrene,stabilized, | ||
| Weight: 3700kg | amine water | ||
| 30 Feet (IBB) | Stainless steel tank (5mm thickness) Q345D frame | Shape: 9125*2438*2591 | |
| Tank: DN2200*5 | |||
| Weight: 5068kg | |||
| Carbon steel tank (5mm thickness) Q345D frame | Shape: 9125*2438*2591 | ||
| Tank: DN2200*5 | |||
| Weight: 5060kg | |||

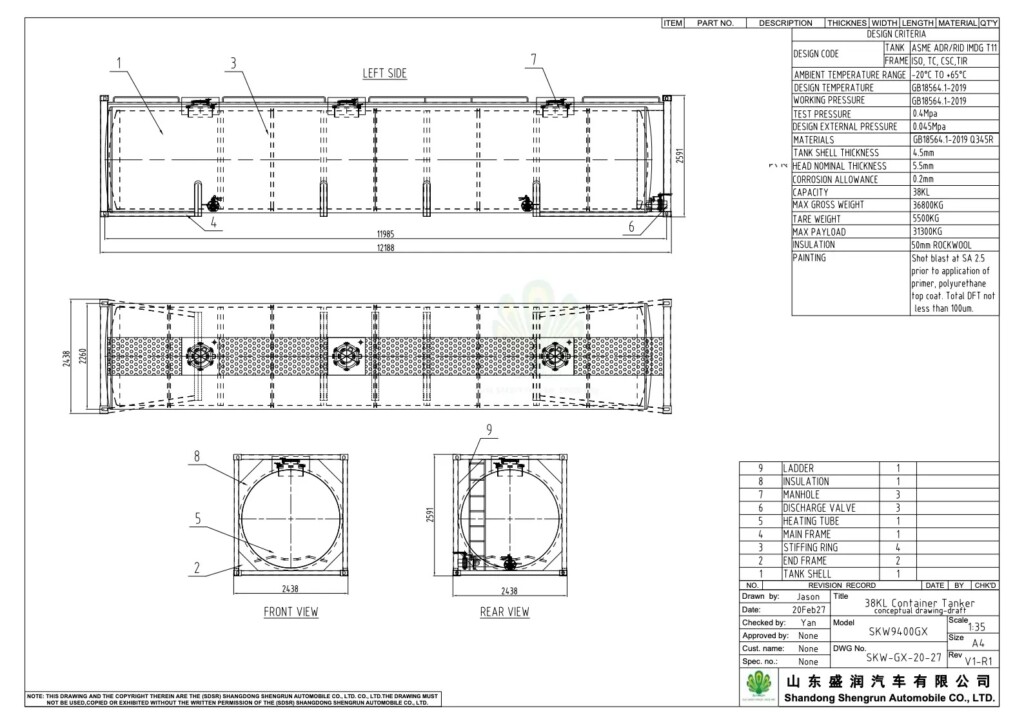

| 40 Feet (IAA) | Stainless steel tank(4mm thickness) Q345D frame | Shape: 12192*2438*2591 | |
| Tank: DN2200*4 | |||
| Weight: 6100kg | |||
| Carbon steel tank (5mm thickness) Q345D frame | Shape: 12192*2438*2591 | ||
| Tank: DN2300*5 | |||
| Weight: 6700kg | |||
| | |||
| PARAMETER | Dimension(L*W*H:mm) | 12760×2500×3700 mm | |
| Body dimension(L*W*H:mm) | 11890×2480×2110 mm | ||
| King pin setting(mm) | 1690mm | ||
| Axle space(mm) | 6550+1310+1310 | ||
| Tare weight(kg) | 7480 kg | ||
| Loading capacity | 45000L | ||
| OEM | Landing gear | Two speed manual operation type with sand shoe | |
| Kingpin | BAOHUA or JOST others | ||
| Brake system | China famous brand brake valve or Wabco | ||
| ABS | 4s/2M | ||
| Brake chamber | Type 30/30 spring brake system on all axles | ||
| Insulation layer | 75mm glass fiber cotton | ||
| Suspension | Mechanical suspension leaf spring or air suspension | ||
| Axle | FUHUA axle, 13 ton capacity/set, 3sets | ||
| Tire | 12R22.5 12PR, 12 pcs China famous brand | ||
| Bottom valves | one pcs of aluminum alloy material | ||
| Wheel Rim | 9.0-22.5 12 pcs | ||
| TANK | Compartment | two | |
| Tank material | Crbon steel | ||
| Bulkhead and Bafflr | Thickness is 6mm | ||
| Tank Shell | Thickness is 5mm | ||
| Shape of tank | circular shape | ||
| Manhole | 2 pcs of aluminum alloy material | ||
| OTHERS | Tool box | 1 pcs | |
| PVC hose box | 2 pcs | ||
| Spare tire carrier | 2 pcs |

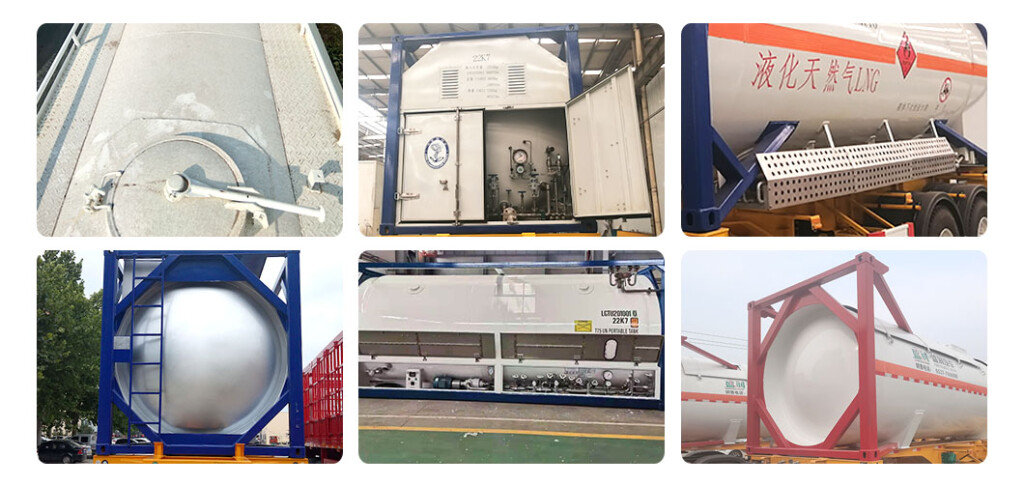

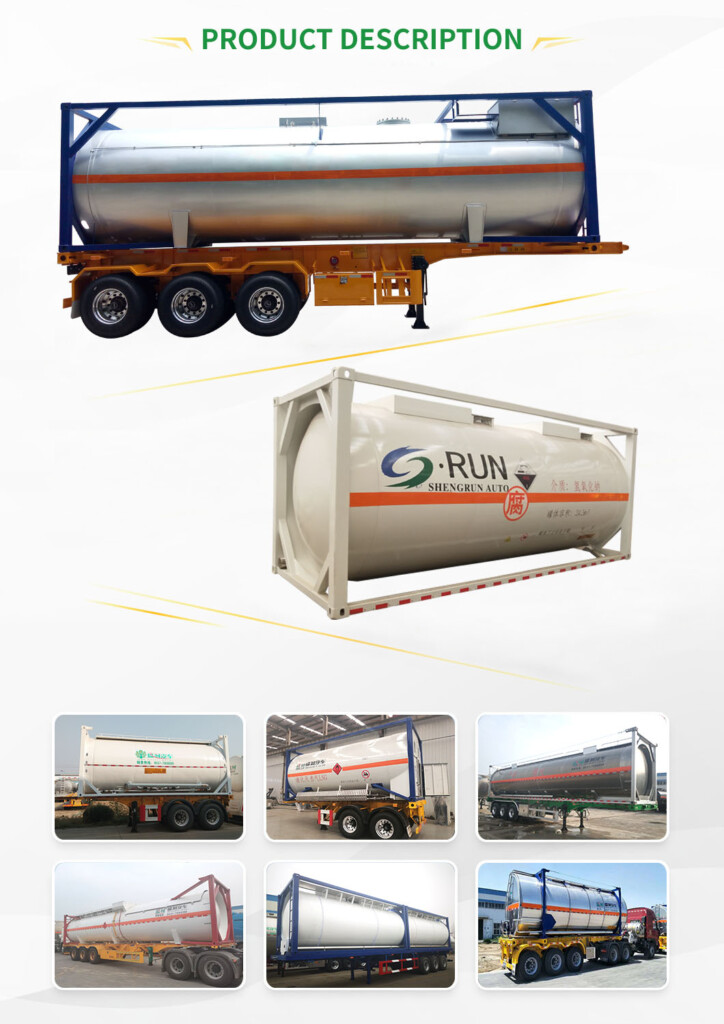

Shengrun ISO tank (tank container) is a kind of container installed in a fastening external frame. It is used to transport liquid goods such as alcohol, oil, liquid food, chemicals and so on.
We are manufacturer, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
