| Specification For Asphalt Tank Trailer | |
| Manufacturer | Shandong Shengrun Automobile Co., Ltd. |
| Type | Asphalt tank trailer |
| Tank Body | |
| Shape | Round or Square (Optional) |

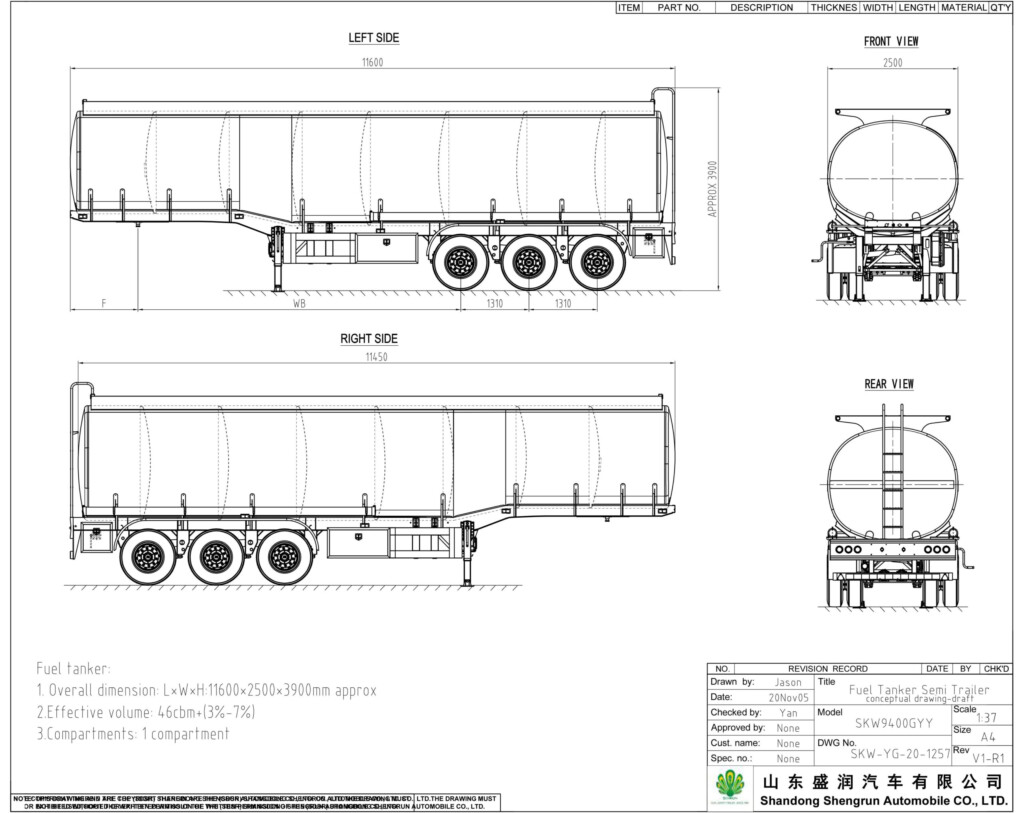

| Dimension | 9500-13000*2500*3900mm ( can be customized ) |
| Tare Weight | About 8000kgs-12800kgs |
| Volume | 30 m³ – 70 m³ |
| Material | 5mm or 6mm/Q235 Carbon steel / Aluminum alloy 5083 ,5182,5454 / Stainless steel |
| Manhole Cover | Carbon steel/ aluminum/ stainless steel manhole cover, diameter 500mm |
| Discharging Pipe | 4”rubber hose, 2 pcs, 6m/each |
| Heating pipe | Four pieces in one row |
| Discharging Valve | Diameter 3″ or 4″ or 6″ |
| Bottom Valve | Thickness is 50 or 80 mm |

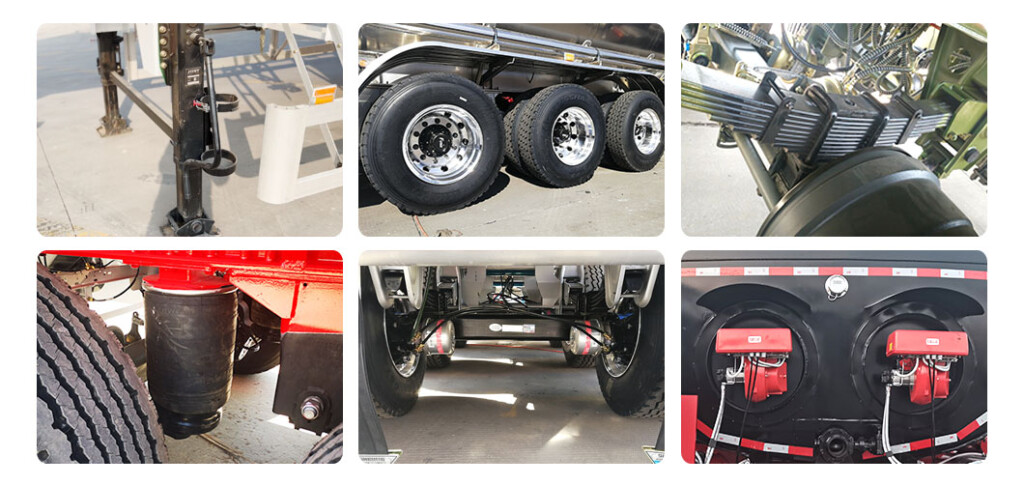

| Chassis | |
| Main Beam | Q345B Carbon steel material |
| Axles | 2 – 4 pcs 13 – 20tons BPW or Fuwa Axles |
| Suspenssion | Mechanical, Air, Bogie |
| Landing Leg | JOST E100 |
| Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve |
| Tire | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand |
| Rim | 9.00*22.5/8.0-20/8.5-20 |
| Leaf spring | 90mm (W) * 13mm (T)* 10 layer or 100mm *12mm *12 layer |
| King Pin | JOST 2″ or 3.5 ” Bolting Type |
| ABS | Optional |
| Any parts fitted could according to clients request, contact us to get more. | |

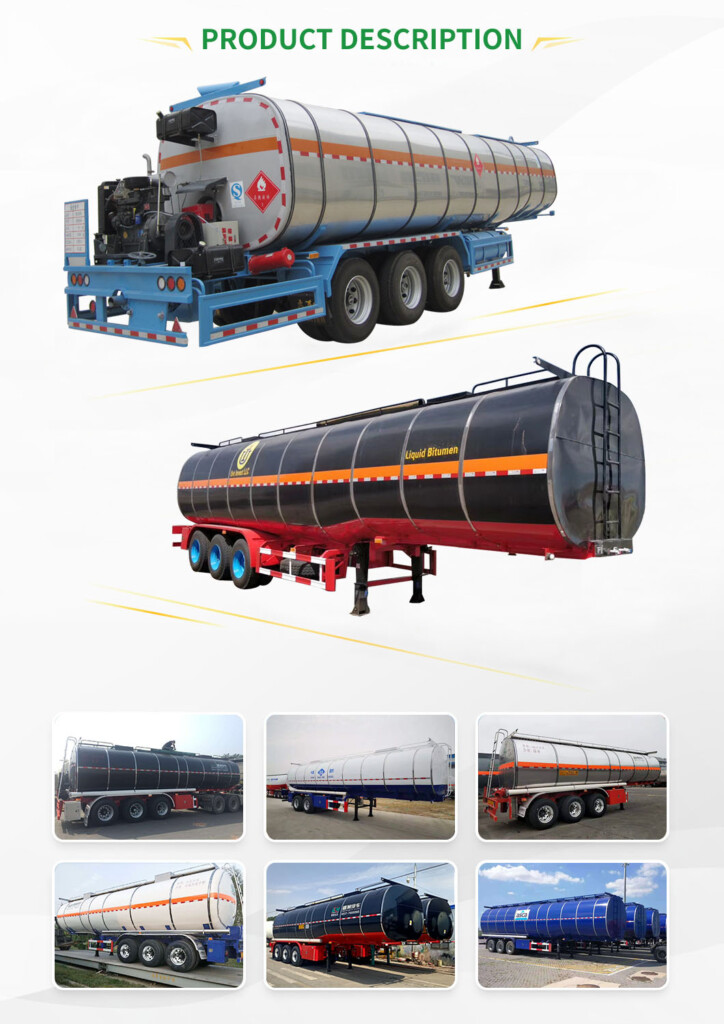

Shengrun bitumen tank trailer, designed with a lowered centre of gravity to ensure greater stability. Generally with heating system and warm keeping system. Our asphalt tanker trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
The tank body material can be carbon steel, stainless steel, aluminum alloy depends on the transport requirements.
Established in 1982, we are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.

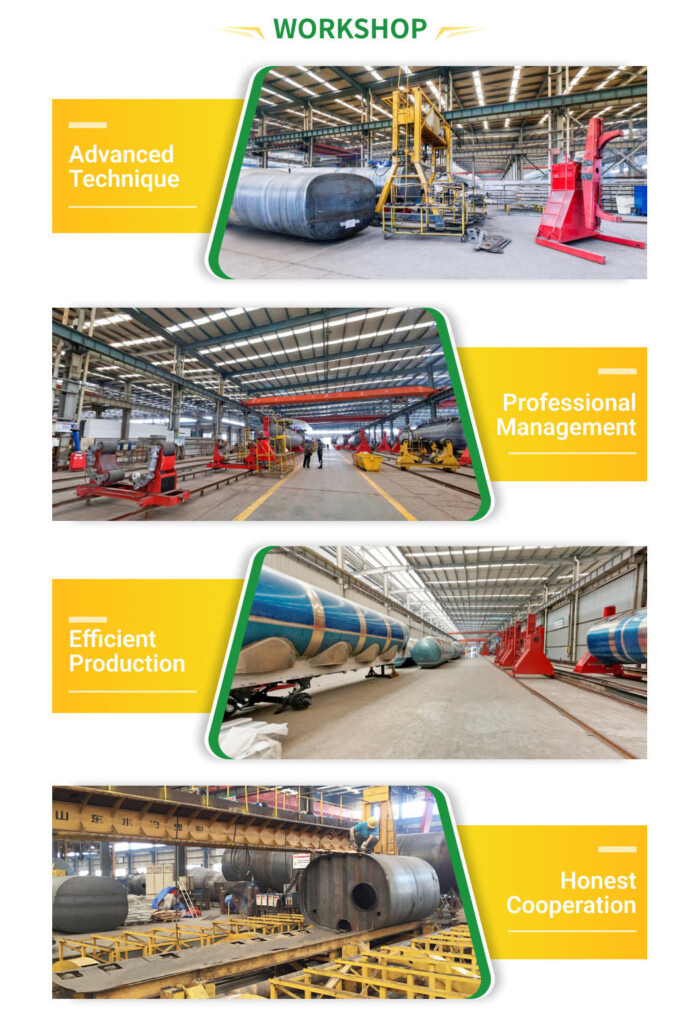

We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.

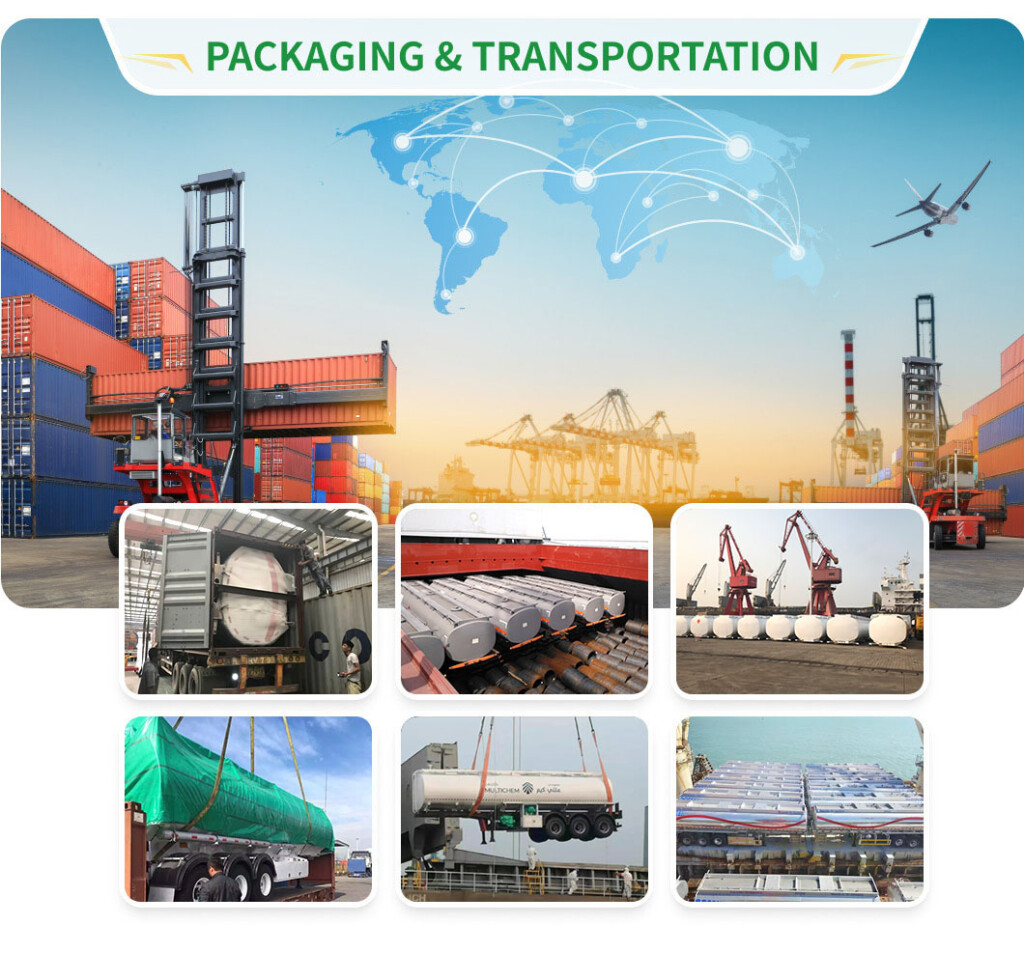

Transportation
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales service
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketing for over 25 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know your purpose, road condition, cargo type, tons of your cargo, dimensions of the trailer, quantity etc. The more info you provide, the more accurate model and the price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q5. How can I get the price of your vehicle?
You can connect with us through any contact information. Our personalized service person will respond to you within 24 hours.
